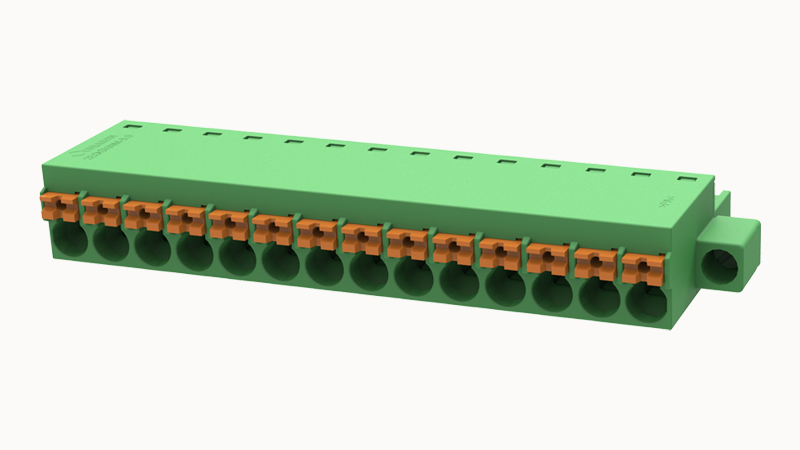

DEGSON 2EDGKNM-5.0-14P

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

24~16AWG

Strip length

11mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated voltage(III/3)

320V

Rated voltage(III/2)

400V

Rated voltage(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Screwdriver

slotted-phillips screwdriver

Number of potentials

14

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Shell color

green

Test Specification

IEC61984/ UL1059

Packing unit

150

Products weight (without packaging)

18.44

Number of rows

1

螺距

5mm

Rated current

12A

Connection method

Push-in spring connection

Rated voltage

400V

Flammability rating

UL94V-0
