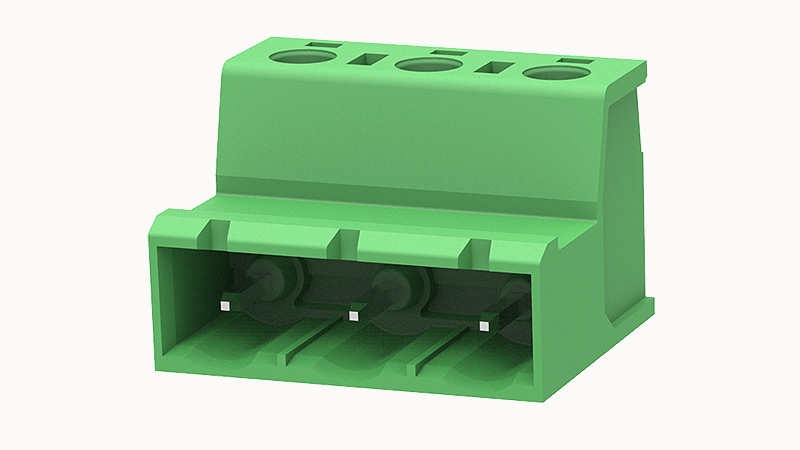

DEGSON 2EDGKR-7.62-03P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

28~12AWG

Strip length

7mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

630V

Rated surge voltage(III/2)

6KV

Connection direction

0°

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

3

Pluggable or not

有

Products weight (without packaging)

5.93

Packing unit

100

Marking strip

/

Bridge

/

Coding strip

2EDG-PWP

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Number of rows

1

螺距

7.62mm

Rated current

20A

screw thread

M3

Connection method

Screw connection

Rated voltage

630V

Flammability rating

UL94V-0
