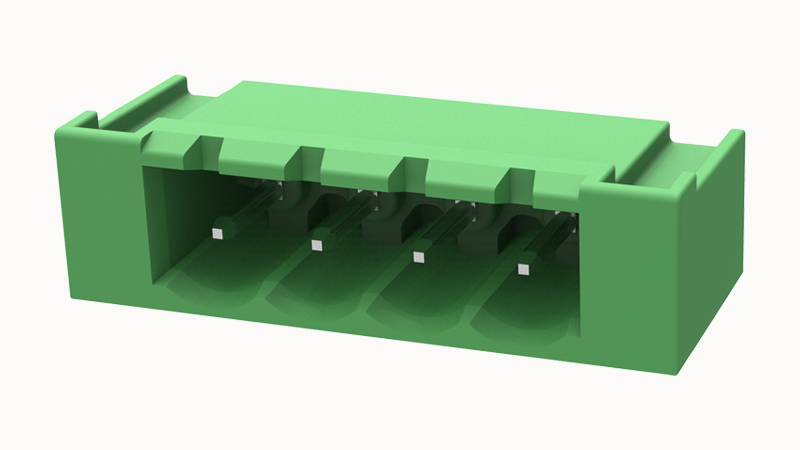

DEGSON 2EDGRMG-5.08-04P

Type of packaging

bag packaging

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

320V

Rated surge voltage(III/2)

4KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

green

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Coding strip

2EDG-PWP-01AH

Marking strip

/

Packing unit

600

Products weight (without packaging)

2.32

Number of rows

1

螺距

5.08mm

Rated current

12A

Rated voltage

320V

Flammability rating

UL94V-0
