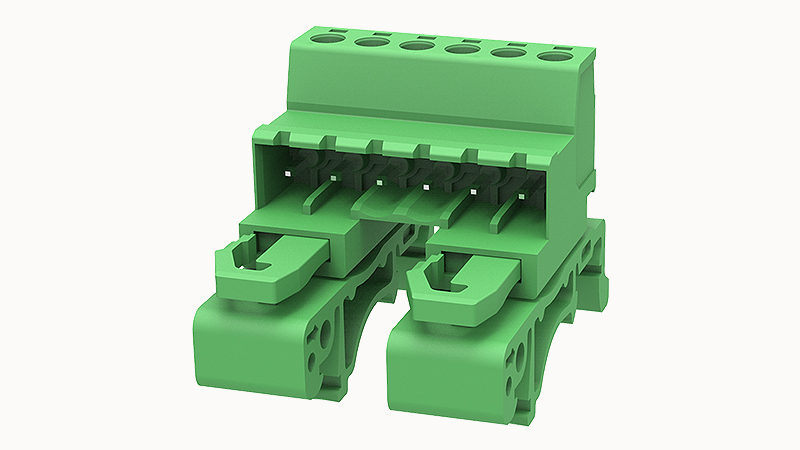

DEGSON 2EDG-URK-5.08-06P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

18~12AWG

Torque

0.5N.m

Strip length

7mm

Rated voltage (B)

300V

Rated current (B)

15A

Rated current(III/2)

320V

Rated surge voltage(III/2)

4KV

Connection direction

0°

Type of installation

Rail mounting

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5.08mm

Rated current

20A

screw thread

M3

Connection method

Screw connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
