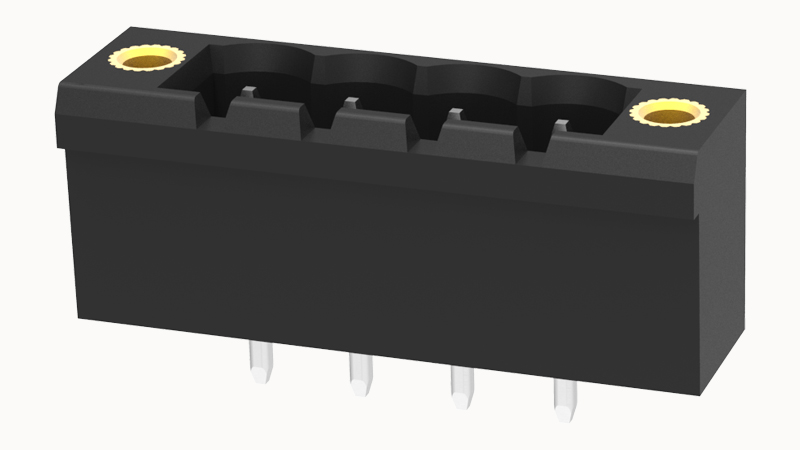

DEGSON 2EDGVM-THR-5.08-04P
- 收藏
- 对比
2EDGVM-THR-5.08-04P
637-2EDGVM-THR-5.08-04P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable Terminal Blocksnominal current20A.Rated voltage(Ⅲ/3)：320V,pitch:5.08mm,Color:black,Contact surface:Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
2EDGVM-THR-5.08-04P详情
DEGSON 2EDGVM-THR-5.08-04P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
High temperature resistant materials
Insulating material group
Ⅲa
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~130℃
Pluggable or not
有
Number of potentials
4
Pin arrangement
Single row in a straight line
Type of installation
PCB welding
Connection direction
90°
Rated surge voltage(III/2)
4KV
Rated current(III/2)
320V
Rated current (D)
10A
Rated current (B)
15A
Rated voltage (D)
300V
Rated voltage (B)
300V
Number of rows
1
螺距
5.08mm
Rated current
20A
Rated voltage
320V
过程
Reflow soldering/wave soldering/manual soldering
Flammability rating
UL94V-0
