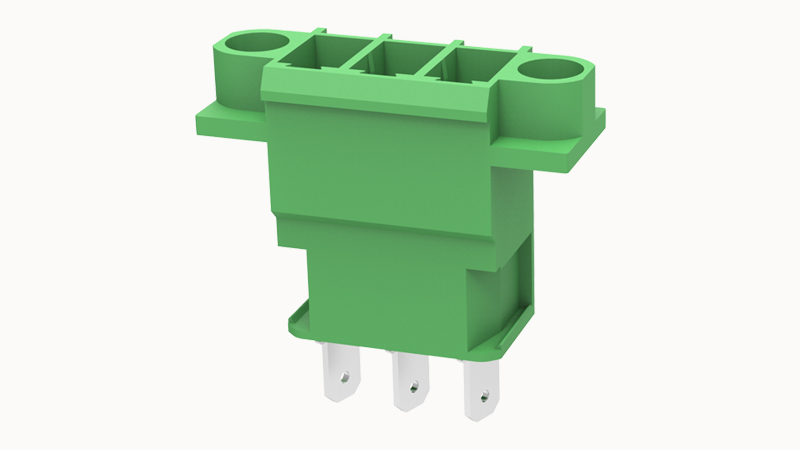

DEGSON 5CDG-7.62-03P

Type of packaging

box-packed

Rated voltage (C)

300V

Rated current (B)

30A

Rated current (C)

30A

Rated current(III/2)

400V

Rated surge voltage(III/2)

4KV

Connection direction

0°

Type of installation

panel

Pin arrangement

Single row in a straight line

Number of potentials

3

Pluggable or not

有

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PBT

Relative tracking index CTI

250V

Glow Wire Flammability Index GWFI

850

Shell color

green

Insulating material group

Ⅲa

Test Specification

IEC61984

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

32A

Rated voltage

400V

Flammability rating

UL94V-0
