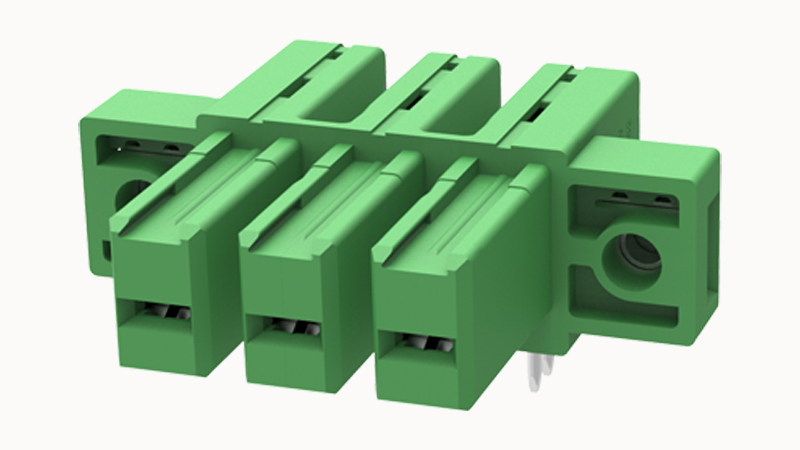

DEGSON 5EDGAM-7.62-03P

Type of packaging

box-packed

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

41A

Rated current (D)

5A

Rated current (C)

41A

Glow wire ignition temperature GWIT

750

Ball pressure test temperature

125℃

Shell color

green

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

5EDG-PWI

Bridge

/

Marking strip

/

Packing unit

270

Products weight (without packaging)

8.38

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

600V

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

3

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

800V

Rated voltage(III/2)

800V

Rated voltage(III/3)

630V

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

800V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
