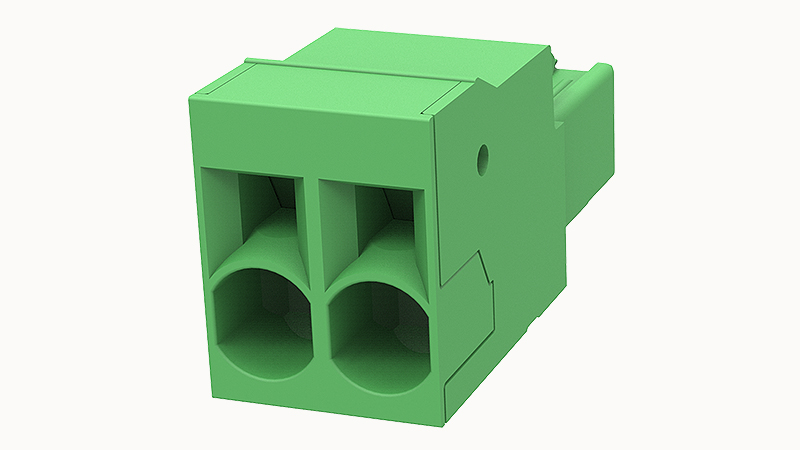

DEGSON 5EDGKD-7.62-02P

Conductor cross section solid

0.2~10mm²

Conductor cross section flexible

0.2~10mm²

AWG

24~8AWG

Strip length

14mm

Rated voltage (B)

600V

Rated current (B)

35A

Rated current(III/3)

1000V

Rated current(III/2)

1000V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

1000V

Flammability rating

UL94V-0
