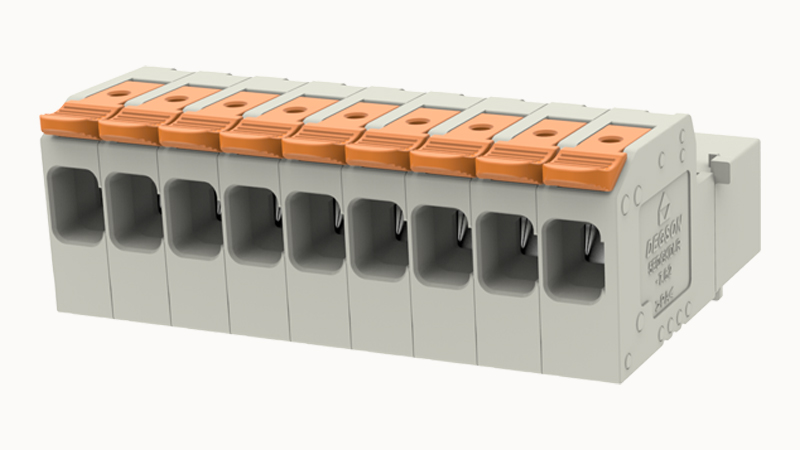

DEGSON 5EDGKDLR-7.62-09P

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~10mm²

Strip length

12mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage(III/3)

800V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

8KV

Connection direction

0°

Number of potentials

9

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

50

Products weight (without packaging)

70.34

Number of rows

1

螺距

7.62mm

Rated current

41A

Connection method

Push-in spring connection

Flammability rating

UL94V-0
