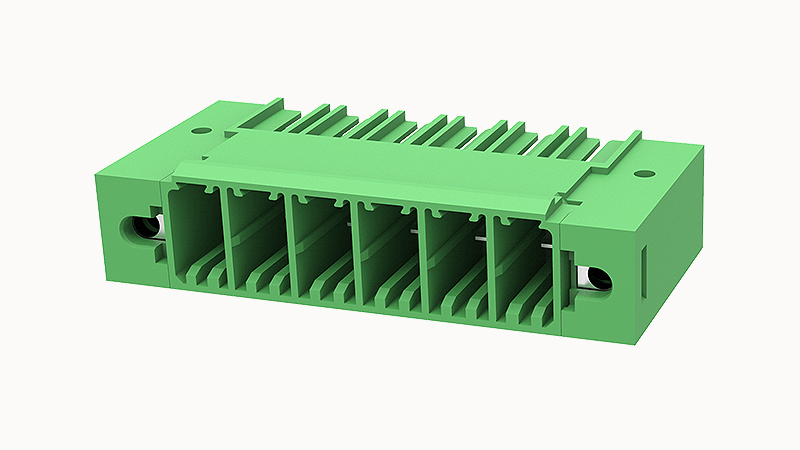

DEGSON 5EDGRHM-7.62-06P

Products weight (without packaging)

15.83

Packing unit

120

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

6

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

630V

Rated voltage(III/3)

630V

Rated current (C)

41A

Rated current (D)

15A

Rated current (B)

41A

Rated voltage (D)

150V

Rated voltage (C)

150V

Rated voltage (B)

300V

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
