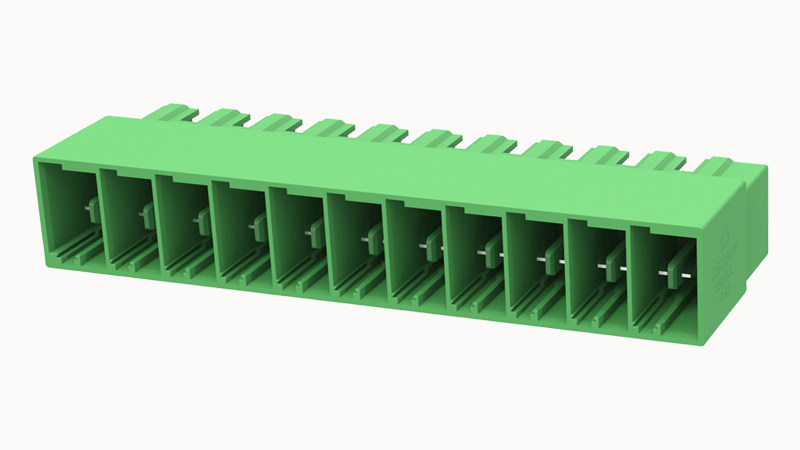

DEGSON 5EDGRL-7.62-11P

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (D)

5A

Rated voltage(III/3)

500V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Products weight (without packaging)

32.175

Packing unit

48

Marking strip

/

Bridge

/

Coding strip

2EDG-PWI

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅲb

Insulation Materials

PBT

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

11

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Number of rows

1

螺距

7.62mm

Rated current

41A

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
