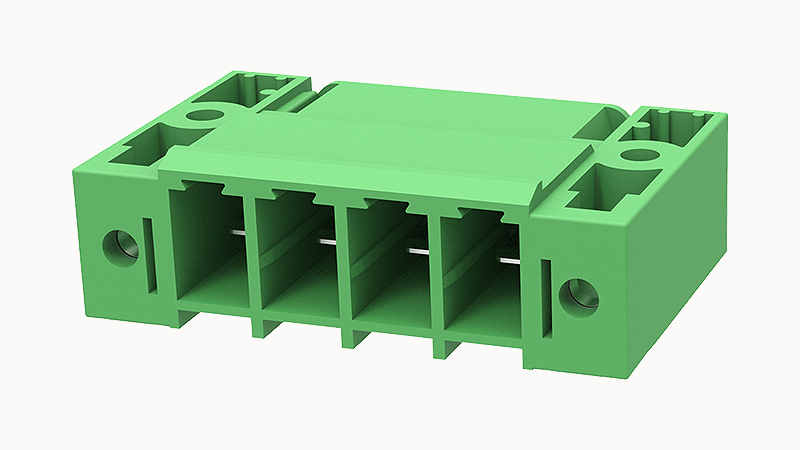

5EDGRM-7.62-04P详情
DEGSON 5EDGRM-7.62-04P重要参数规格及、参数值,及相似型号如下:
- 参数名参数值全选
- 参数名参数值全选
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
300V
Rated current (B)
30A
Operating tool
/
Coding strip
/
Bridge
/
Marking strip
/
Packing unit
150
Products weight (without packaging)
15.29
Screwdriver
/
Ambient temperature (operation)
-40℃~125℃(depending on derating curve)
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅲa
Insulation Materials
PBT
Contact point metal surface
tin-plated
Contact Materials
copper
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
4
Pin arrangement
Double-row in a straight line
Type of installation
PCB welding
Connection direction
0°
Rated surge voltage(III/2)
4KV
Rated voltage(III/2)
400V
Rated current (C)
30A
Rated current (D)
10A
Number of rows
1
螺距
7.62mm
UL可燃性规范
UL94V-0
Rated current
32A
Rated voltage
400V
过程
Wave soldering/manual soldering
