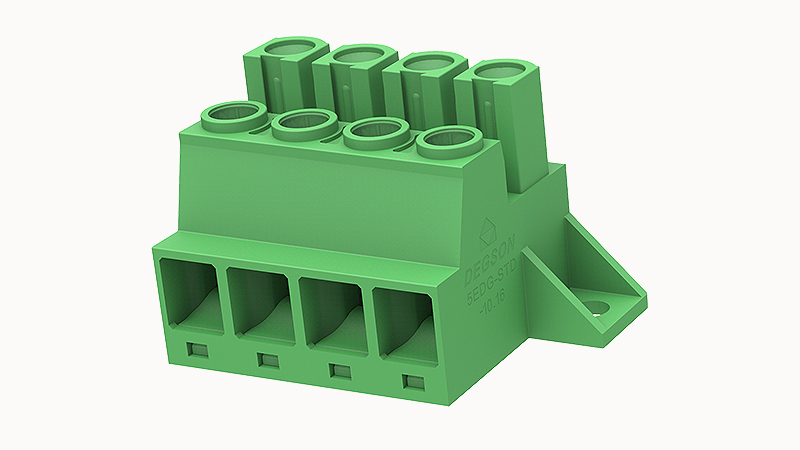

DEGSON 5EDG-STD-10.16-04P

Conductor cross section solid

0.5~16mm²

Conductor cross section flexible

0.5~16mm²

AWG

20~6AWG

Torque

2N.m

Strip length

12mm

Rated voltage (B)

600V

Rated current (B)

52A

Rated voltage(III/3)

1000V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

8KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

Silver plated

Contact zone metal surface

Silver plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

5EDG-PWI

Bridge

/

Marking strip

/

Packing unit

70

Products weight (without packaging)

27.053

Number of rows

1

螺距

10.16mm

Rated current

57A

screw thread

M4.5

Connection method

Screw connection

Rated voltage

1000V

Flammability rating

UL94V-0
