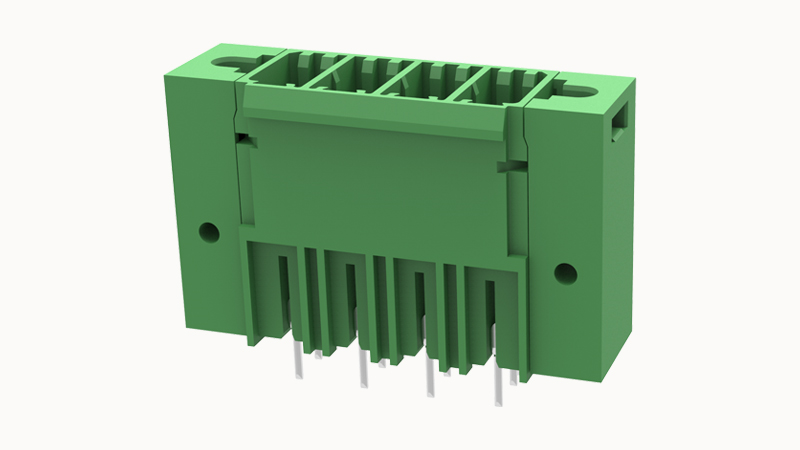

DEGSON 5EDGVHM-7.62-04P

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

600V

Rated current (B)

41A

Rated current (D)

5A

Rated current (C)

41A

Rated current(III/3)

630V

Rated current(III/2)

630V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Three rows in a straight line

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

41A

screw thread

M3

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
