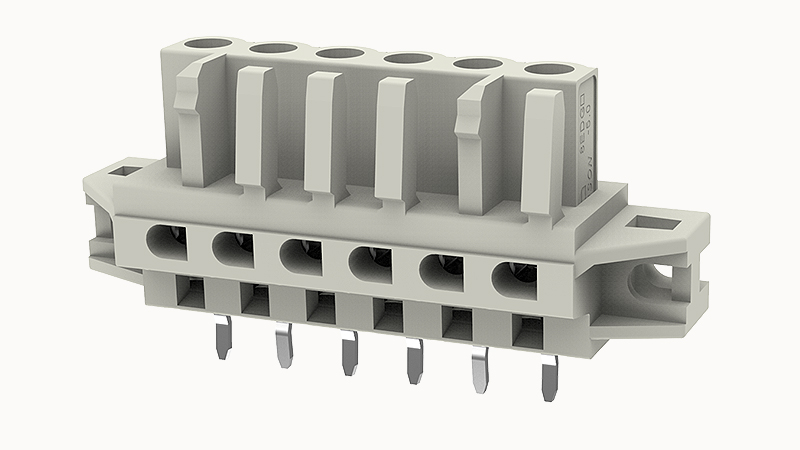

DEGSON 8EDGDM-5.0-06P

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/3)

320V

Rated surge voltage(III/3)

4KV

Connection direction

90°

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

350

Products weight (without packaging)

6.65

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

spring-cage connection

Rated voltage

320V

Flammability rating

UL94V-0
