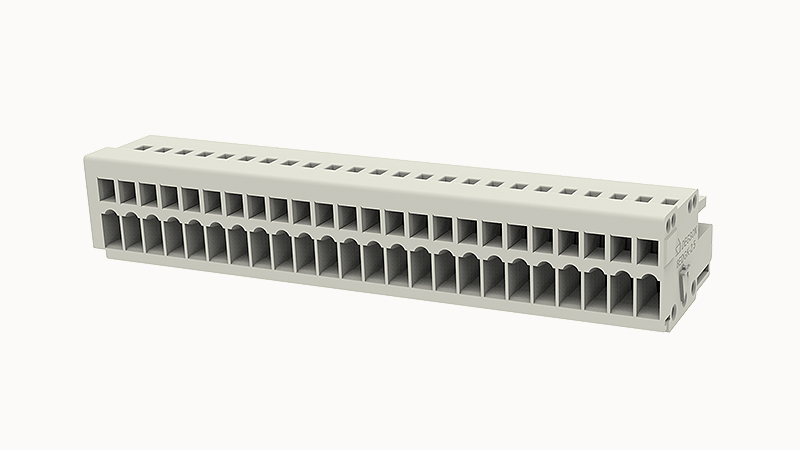

DEGSON 8EDGK-2.5-24P

Conductor cross section solid

0.2~0.5mm²

Conductor cross section flexible

0.2~0.5mm²

AWG

28~20AWG

Strip length

6mm

Rated voltage (B)

150V

Rated voltage (C)

150V

Rated voltage (D)

150V

Rated current (B)

4A

Rated current (D)

4A

Rated current (C)

4A

Rated voltage(III/3)

130V

Rated surge voltage(III/3)

2.5KV

Connection direction

0°

Number of potentials

24

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

DG009

Screwdriver

/

Packing unit

335

Products weight (without packaging)

15.75

Number of rows

1

螺距

2.5mm

Rated current

6A

Connection method

spring-cage connection

Rated voltage

130V

Flammability rating

UL94V-0
