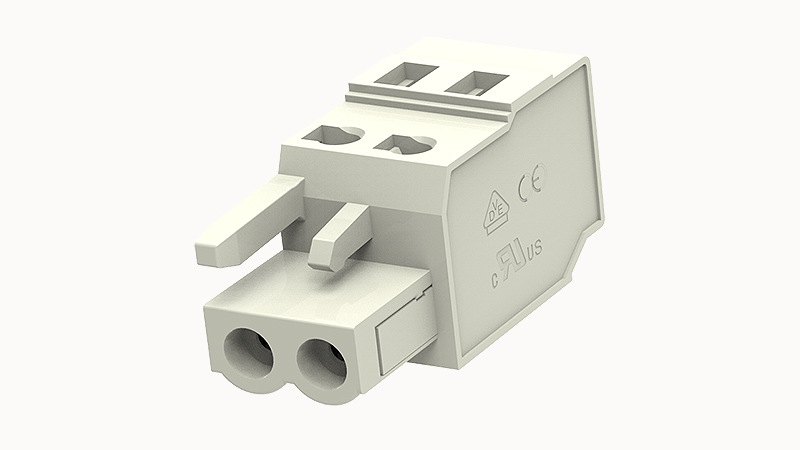

DEGSON 8EDGK-5.0-02P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

22~14AWG

Strip length

9mm

Rated voltage (B)

300V

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Connection direction

0°

Rated surge voltage(III/3)

4KV

Rated current(III/3)

320V

Rated current (C)

15A

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (C)

150V

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

spring-cage connection

Rated voltage

320V

Flammability rating

UL94V-0
