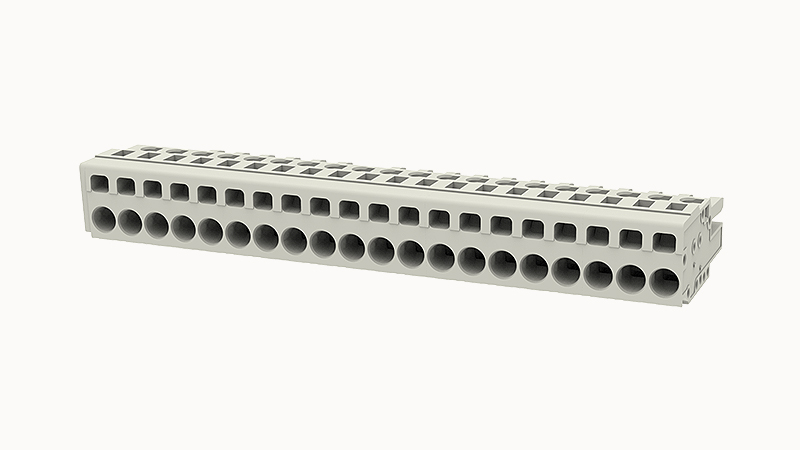

DEGSON 8EDGK-5.0-20P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

22~14AWG

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated current (C)

15A

Products weight (without packaging)

37.5

Packing unit

110

Marking strip

/

Bridge

DG018-5.0

Coding strip

/

Operating tool

DG010

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

20

Connection direction

0°

Rated surge voltage(III/3)

4KV

Rated voltage(III/3)

320V

Number of rows

1

螺距

5mm

UL可燃性规范

UL94V-0

Rated current

20A

Connection method

spring-cage connection

Rated voltage

320V
