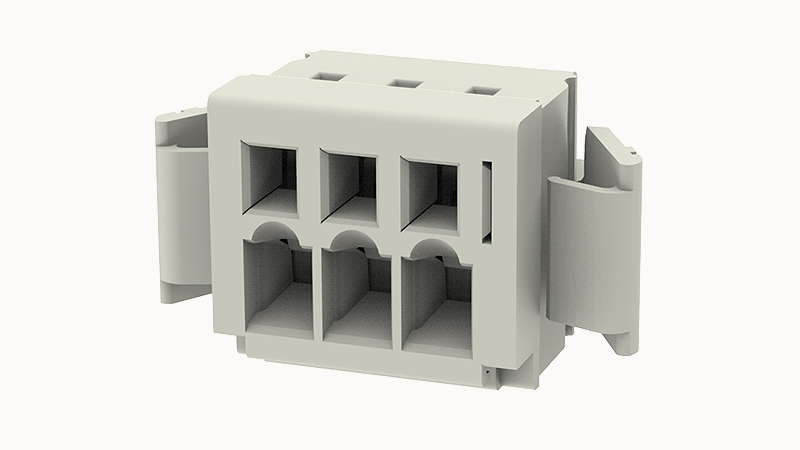

DEGSON 8EDGKG-3.81-03P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

28~14AWG

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Products weight (without packaging)

3.03

Packing unit

130

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

3

Connection direction

0°

Rated surge voltage(III/3)

2.5KV

Rated voltage(III/3)

130V

Number of rows

1

螺距

3.81mm

UL可燃性规范

UL94V-0

Rated current

10A

Connection method

spring-cage connection

Rated voltage

130V
