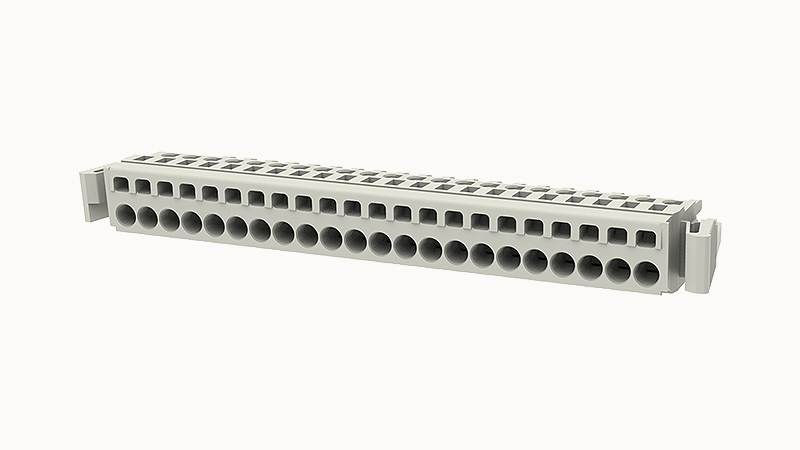

DEGSON 8EDGKG-5.0-22P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

22~14AWG

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated current (C)

15A

Rated voltage(III/3)

320V

Rated surge voltage(III/3)

4KV

Connection direction

0°

Number of potentials

22

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Products weight (without packaging)

40

Packing unit

105

Marking strip

/

Bridge

DG018-5.0

Coding strip

/

Operating tool

DG010

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

spring-cage connection

Rated voltage

320V

Flammability rating

UL94V-0
