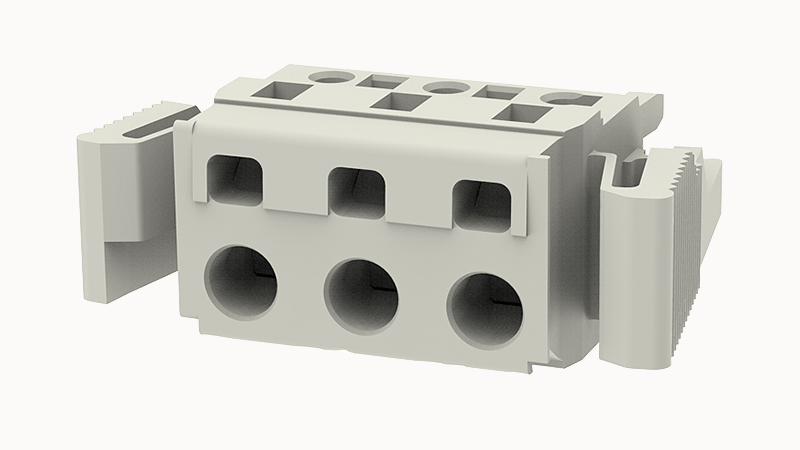

DEGSON 8EDGKGB-7.5-03P
- 收藏
- 对比
8EDGKGB-7.5-03P
637-8EDGKGB-7.5-03P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:20A.Rated voltage （III/3）:400V,pitch:7.5mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
8EDGKGB-7.5-03P详情
DEGSON 8EDGKGB-7.5-03P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~2.5mm²
Conductor cross section flexible
0.2~2.5mm²
AWG
22~14AWG
Strip length
10mm
Ambient temperature (operation)
-40℃~105℃
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅰ
Insulation Materials
PA66
Contact zone metal surface
tin-plated
Contact point metal surface
tin-plated
Contact Materials
copper
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
3
Connection direction
0°
Rated surge voltage(III/3)
4KV
Rated current(III/3)
400V
Rated current (C)
15A
Rated current (B)
15A
Rated voltage (C)
300V
Rated voltage (B)
300V
Number of rows
1
螺距
7.5mm
Rated current
20A
Connection method
spring-cage connection
Rated voltage
400V
Flammability rating
UL94V-0
