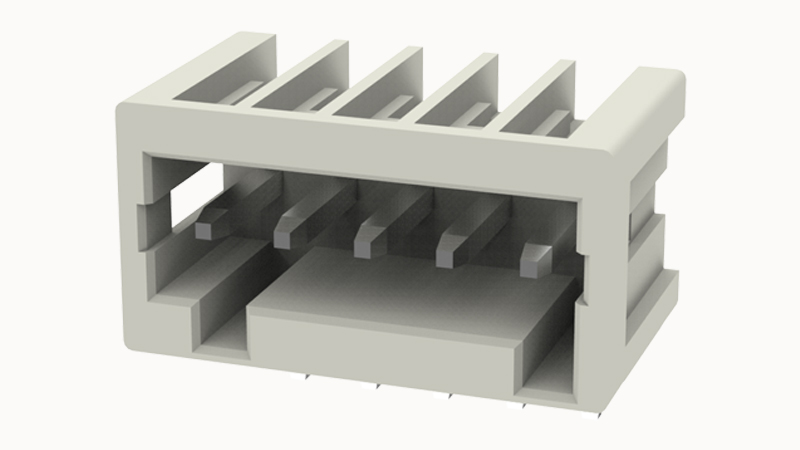

DEGSON 8EDGRC-2.5-05P

Rated voltage(III/3)

130V

Rated surge voltage(III/3)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

200

Products weight (without packaging)

0.8

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

5

Pin arrangement

Single row in a straight line

Rated current (C)

4A

Rated current (D)

4A

Rated current (B)

4A

Rated voltage (D)

150V

Rated voltage (C)

150V

Rated voltage (B)

150V

Number of rows

1

螺距

2.5mm

UL可燃性规范

UL94V-0

Rated current

6A

Rated voltage

130V

过程

Wave soldering/manual soldering
