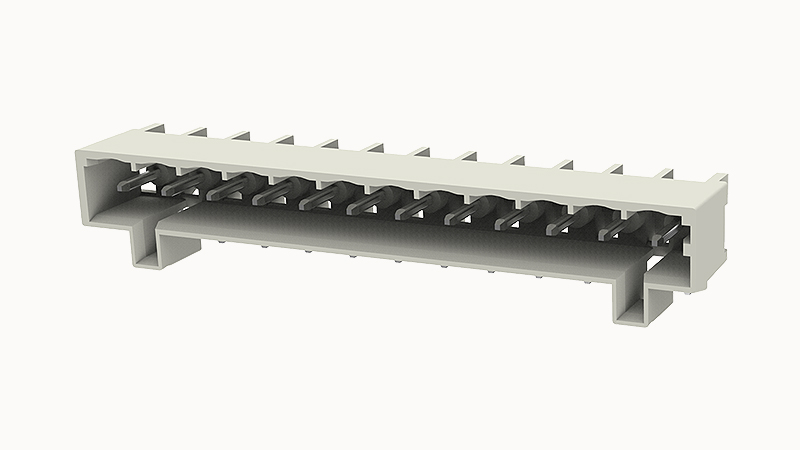

DEGSON 8EDGRCB-5.0-12P

Products weight (without packaging)

4.3

Packing unit

540

Marking strip

/

Bridge

/

Coding strip

DG014

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

12

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/3)

4KV

Rated voltage(III/3)

320V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

5mm

Rated current

20A

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
