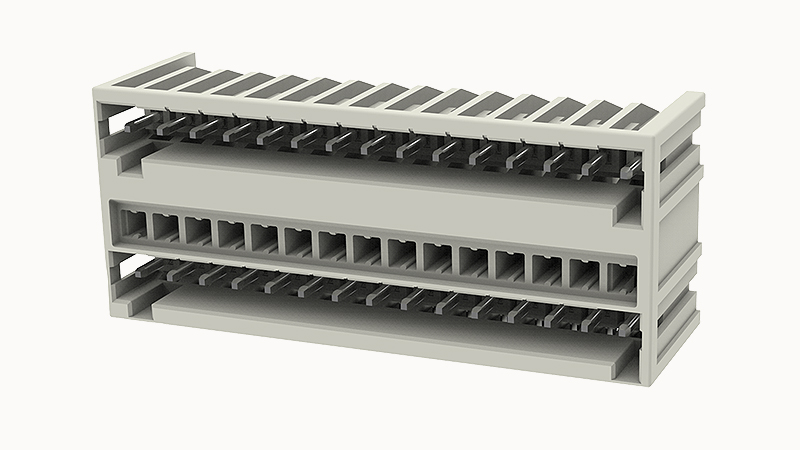

DEGSON 8EDGRH-3.5-30P

Rated voltage (B)

300V

Rated current (B)

10A

Rated voltage(II/2)

250V

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

30

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

DG024

Bridge

/

Marking strip

/

Packing unit

150

Products weight (without packaging)

15.3

Number of rows

2

螺距

3.5mm

Rated current

10A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
