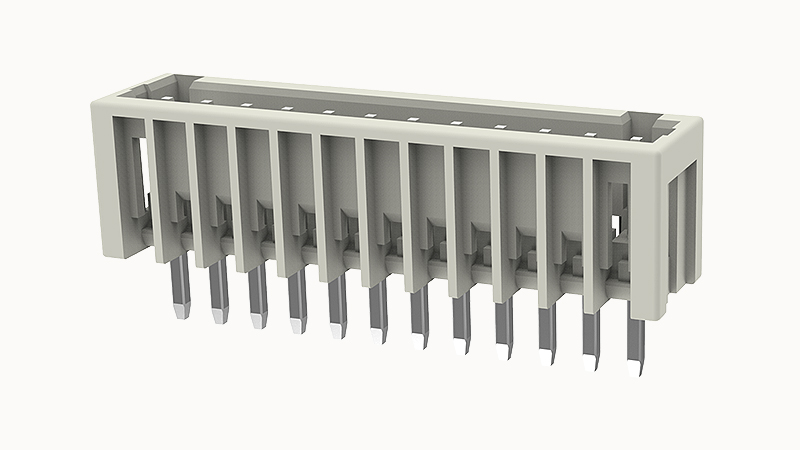

DEGSON 8EDGVC-2.5-12P

Products weight (without packaging)

7.33

Rated voltage (B)

150V

Rated voltage (C)

150V

Rated voltage (D)

150V

Rated current (B)

4A

Rated current (D)

6A

Rated current (C)

4A

Rated voltage(III/3)

130V

Rated surge voltage(III/3)

2.5KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

12

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

100

Number of rows

1

螺距

2.5mm

UL可燃性规范

UL94V-0

Rated current

6A

Rated voltage

130V

过程

Wave soldering/manual soldering
