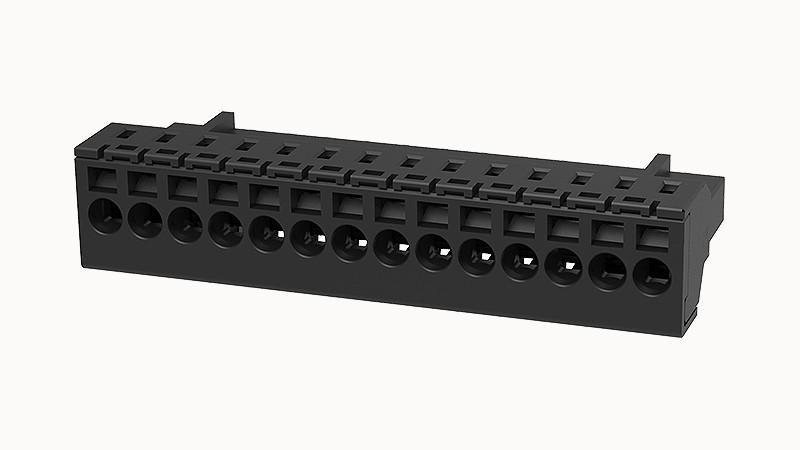

DEGSON 9EDGK-5.0-14P

Products weight (without packaging)

22.82

Packing unit

115

Screwdriver

/

Operating tool

DG010

Marking strip

/

Bridge

DG018-5.0

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

II

Insulation Materials

PA66

Contact zone metal surface

Gold plate

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

14

Connection direction

0°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

320V

Rated voltage(III/2)

160V

Rated voltage(III/3)

160V

Rated current (D)

10A

Rated current (B)

14.5A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

9mm

AWG

28~14AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

spring-cage connection

Rated voltage

320V

Flammability rating

UL94V-0
