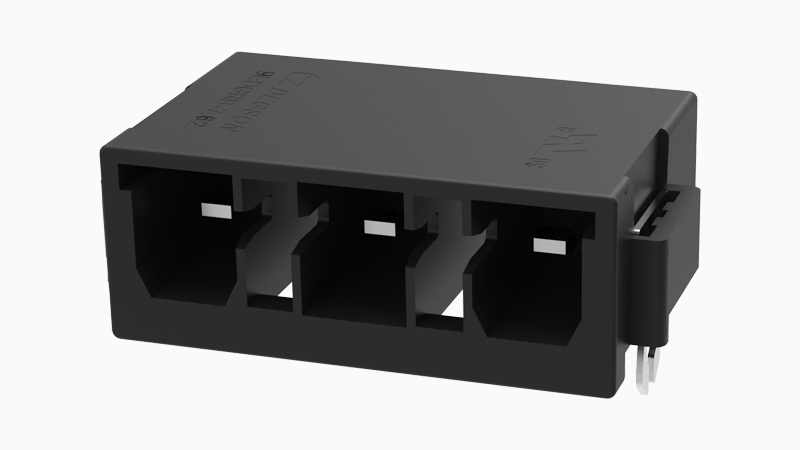

DEGSON 9EDGRB-7.62-03P

Type of packaging

reel

Rated voltage (B)

300V

Rated voltage (D)

600V

Rated current (D)

5A

Rated current (C)

20A

Rated current(III/3)

400V

Rated current(III/2)

630V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Relative tracking index CTI

250V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃

Number of rows

1

螺距

7.62mm

Rated current

20A

Rated voltage

630V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
