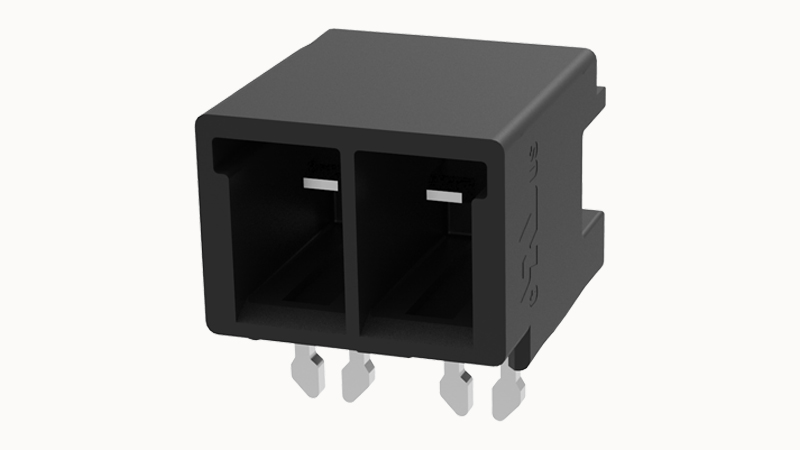

DEGSON 9EDGRB-HC-5.0-02P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

20A

Rated current (D)

10A

Rated voltage(III/3)

300V

Rated voltage(III/2)

630V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Test Specification

IEC61984/ UL1059

Vibration resistant

1.0mm/50HZ

Relative humidity (storage/transport)

30% ~ 70%

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (storage/transportation)

-40℃~70℃

Screwdriver

/

Operating tool

/

Coding strip

2EDG-PWP-01A(H)

Bridge

/

Marking strip

/

Packing unit

1600

Products weight (without packaging)

1.6

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

300V

Flammability rating

UL94V-0
