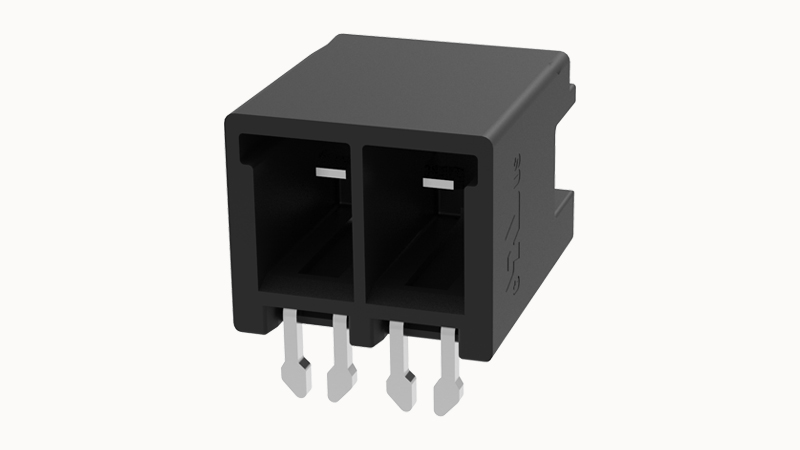

DEGSON 9EDGRB-HC-5.0-DA-02P

Type of packaging

box-packed

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

20A

Rated current (D)

10A

Rated voltage(III/3)

500V

Products weight (without packaging)

1.6

Packing unit

1600

Marking strip

/

Bridge

/

Coding strip

2EDG-PWP-01A(H)

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Shell color

Black

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

600V

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

4

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Rated surge voltage(III/3)

4KV

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

500V

Flammability rating

UL94V-0
