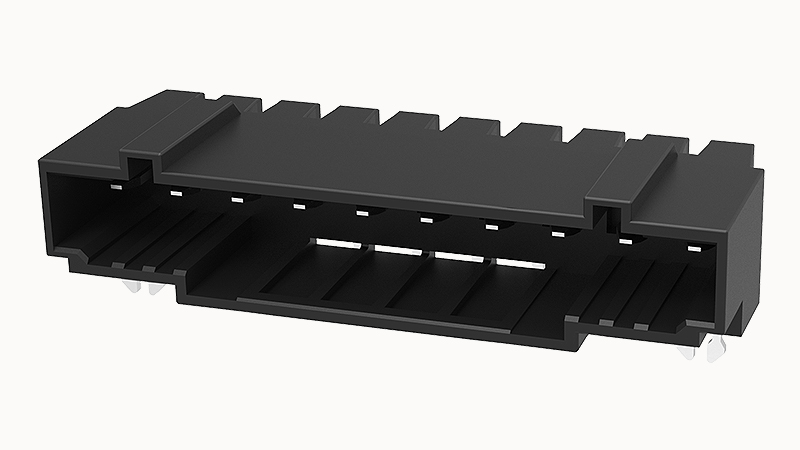

DEGSON 9EDGRC-5.0-10P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

14.5A

Rated current (D)

10A

Rated voltage(III/3)

160V

Rated voltage(III/2)

160V

Rated voltage(II/2)

320V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

10

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

Gold plate

Insulation Materials

PA66

Insulating material group

II

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

250

Products weight (without packaging)

7.05

Number of rows

1

螺距

5mm

Rated current

20A

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
