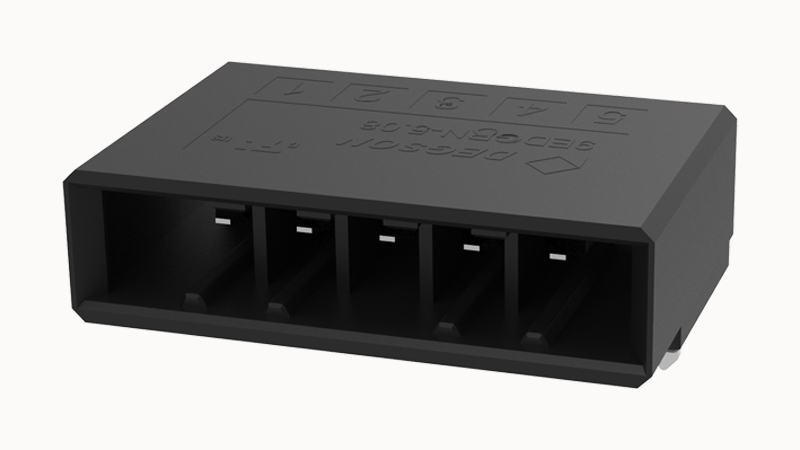

DEGSON 9EDGRN-5.08-05P

Type of packaging

Plastic tray

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

14.5A

Rated current (D)

10A

Rated current(III/3)

160V

Rated current(III/2)

160V

Rated current(II/2)

320V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

5

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PBT

Relative tracking index CTI

400V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-30℃~120℃

Number of rows

1

螺距

5.08mm

Rated current

16A

Rated voltage

160V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
