DEGSON DD-128-FC
- 收藏
- 对比
DD-128-FC
637-DD-128-FC
背板连接器 - ARINC 插件
--
大陆
立即发货

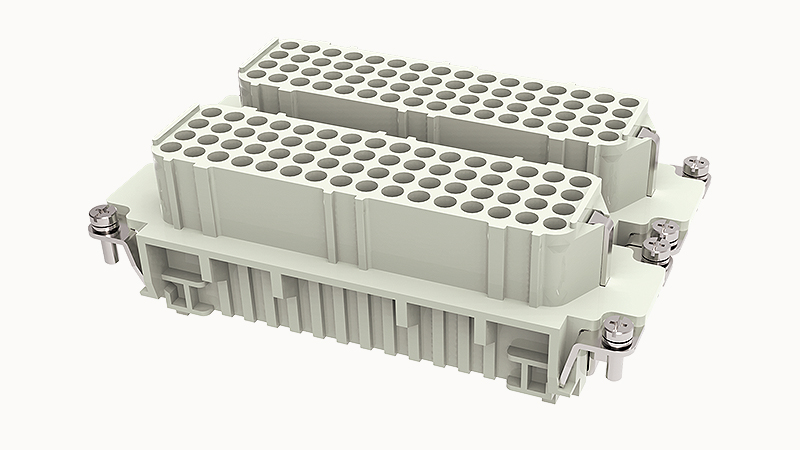

Heavy-duty insert,Number of contacts:128 PE,Dimension:48B,Rated voltage :250V,Rated current:10A,Female insert,Crimping connector
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DD-128-FC详情
DEGSON DD-128-FC重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
classification
Insert
Female/Male
Female
Dimensions
48B
PE Contacts
有
RoHS
Comply with RoHS exemptions
Rated pulse voltage
4KV
Pollution level
3
On the basis of UL /CSARated current
600V
working life-mating cycles
≥500 time
Strip length
6-8mm
Conductor cross sections(AWG)
26-14AWG
Connection meets standards
DIN EN 60664 DIN EN 61984
系列
DD
Number of positions
128
color
Grey/White（RAL 7032）
Contact resistance
≤3mΩ
Insulation resistance
≥10000MΩ
Temperature range
-40℃~+125℃
Rated current
10A
Connection method
Crimping connection
Flammability rating
V-0
