DEGSON DE-006-F
- 收藏
- 对比
DE-006-F
637-DE-006-F
背板连接器 - ARINC 插件
--
大陆
立即发货

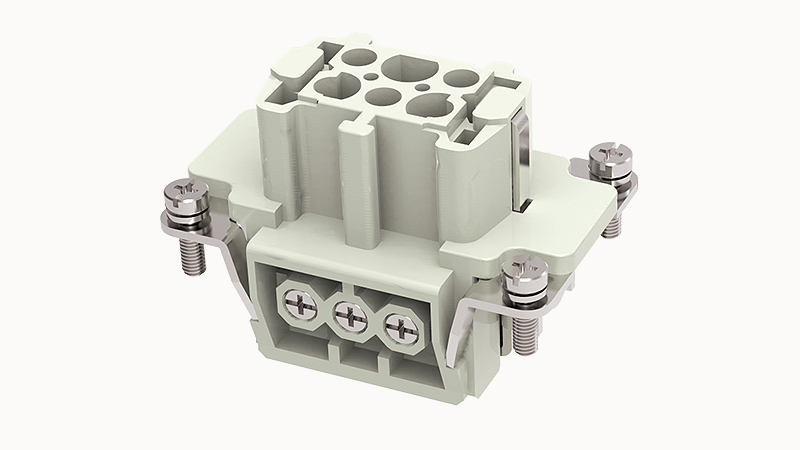

Heavy-duty insert,Number of contacts:6 PE,Dimension:6B,Rated voltage :500V,Rated current:16A,Female insert,Screw connector
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DE-006-F详情
DEGSON DE-006-F重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
classification
Insert
Female/Male
Female
Dimensions
6B
PE Contacts
有
RoHS
Comply with RoHS exemptions
Rated pulse voltage
6KV
Pollution level
3
On the basis of UL /CSARated current
600V
working life-mating cycles
≥500 time
Strip length
7mm
Rated torque
0.5N.m
Conductor cross sections(AWG)
18-14AWG
Connection meets standards
DIN EN 60664 DIN EN 61984
系列
DE
Number of positions
6
color
Grey/White（RAL 7032）
Contact resistance
≤1mΩ
Insulation resistance
≥10000MΩ
Temperature range
-40℃~+125℃
Rated current
16A
Connection method
Screw connection
Flammability rating
V-0
