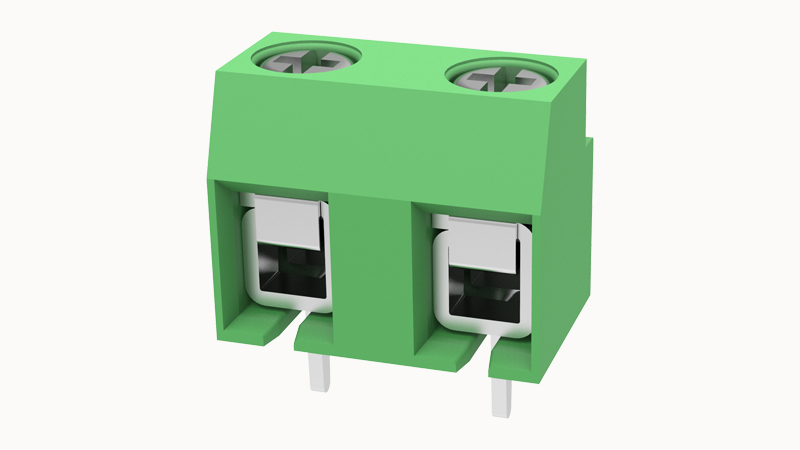

DEGSON DG126-7.5-02P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

26~14AWG

Torque

0.4N.m

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

10A

Rated current(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

slotted-phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅲa

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.5mm

Rated current

18A

screw thread

M2.6

Connection method

Screw connection with wire protection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
