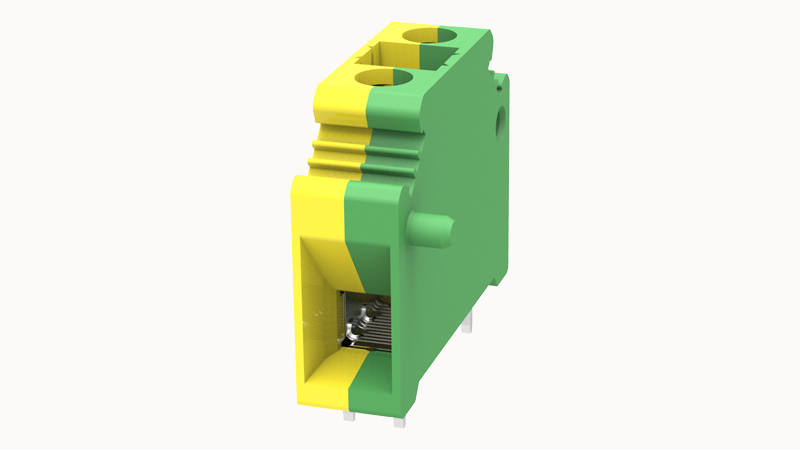

DEGSON PS10-PE-01P
- 收藏
- 对比
PS10-PE-01P
637-PS10-PE-01P
端子块 - 配件
--
大陆
立即发货
PCB terminal blocks,Rated current: 57A,Rated voltage （III/2）450V,Cross section:10mm²,pitch:10.0mm,connector method:Screw connector with tension sleeve,Color:green-yellow,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
PS10-PE-01P详情
DEGSON PS10-PE-01P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~10mm²
Conductor cross section flexible
0.2~10mm²
AWG
24~6AWG
Torque
1.2N.m
Strip length
13mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
600V
Rated current (B)
70A
Rated current (D)
10A
Rated current (C)
70A
Rated current(III/2)
450V
Rated power frequency voltage(1min)
2.5KV
Connection direction
0°
Type of installation
PCB welding
Pin arrangement
Double-row in a straight line
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
10mm
Rated current
57A
screw thread
M4
Connection method
Screw connection
Rated voltage
450V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-0
