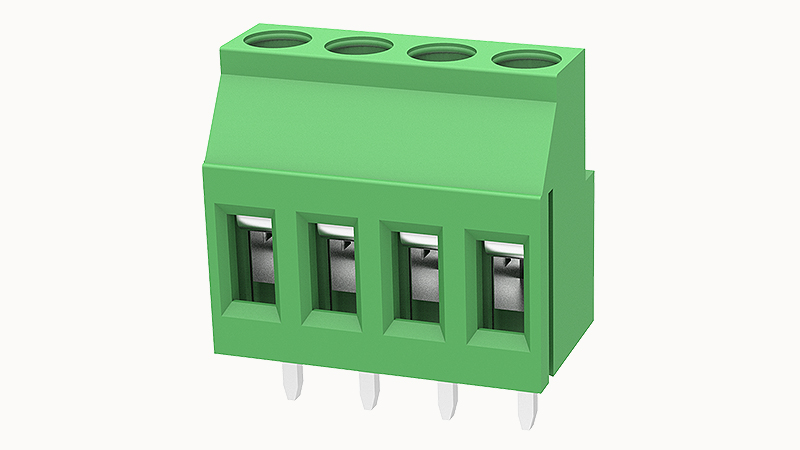

DEGSON DG130-5.0-04P

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

DG019-5.0

Marking strip

/

Operating tool

/

Packing unit

675

Products weight (without packaging)

7.44

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/2)

2KV

Rated voltage(III/2)

250V

Rated current (D)

10A

Rated current (B)

20A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.5N.m

AWG

26~12AWG

Conductor cross section flexible

0.5~2.5mm²

Conductor cross section solid

0.5~2.5mm²

Number of rows

1

螺距

5mm

Rated current

20A

screw thread

M3

Connection method

Screw connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
