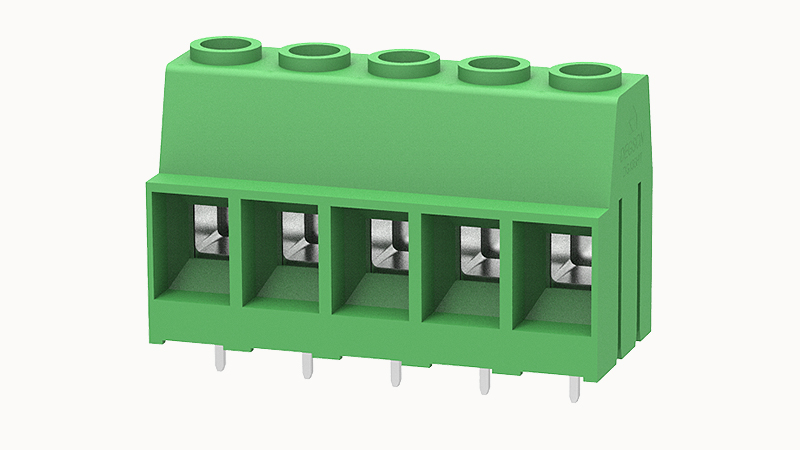

DEGSON DG136HT-10.16-05P

Conductor cross section solid

2.5~16mm²

Conductor cross section flexible

2.5~16mm²

AWG

20~6AWG

Torque

1.2N.m

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

300V

Rated current (B)

60A

Rated current (D)

10A

Rated current (C)

60A

Products weight (without packaging)

39.3

Packing unit

85

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

5

Screwdriver

Slotted screwdriver

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

3.5KV

Rated voltage(III/2)

1000V

Number of rows

1

螺距

10.16mm

UL可燃性规范

UL94V-0

Rated current

65A

screw thread

M4

Connection method

Screw connection

Rated voltage

1000V

过程

Wave soldering/manual soldering
