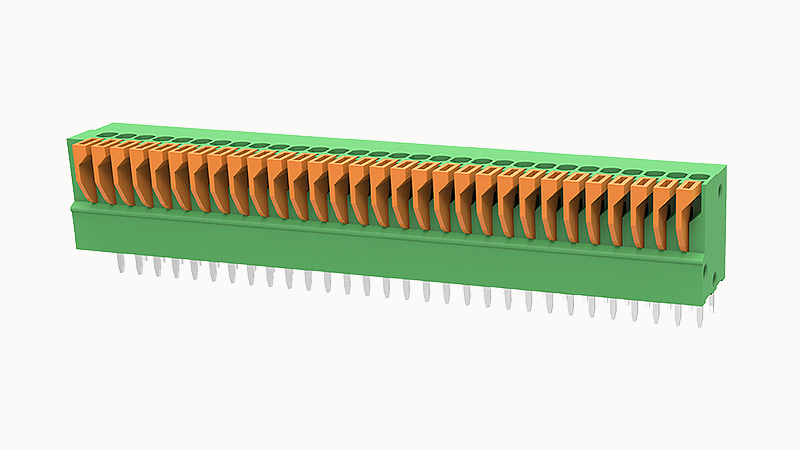

DEGSON DG141V-2.54-30P

Screwdriver

/

Packing unit

220

Products weight (without packaging)

15.25

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

30

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated power frequency voltage(1min)

1.25KV

Rated voltage(III/2)

130V

Rated current (C)

2A

Rated current (D)

2A

Rated current (B)

2A

Rated voltage (D)

150V

Rated voltage (C)

150V

Rated voltage (B)

150V

Strip length

11mm

AWG

24~20AWG

Conductor cross section flexible

0.2~1.0mm²

Conductor cross section solid

0.2~1.0mm²

Number of rows

1

螺距

2.54mm

Rated current

6A

Connection method

Push-in spring connection

Rated voltage

130V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
