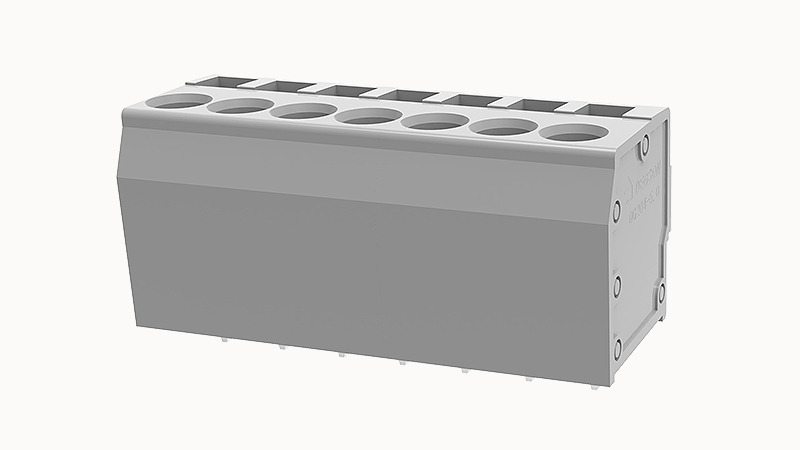

DEGSON DG204-5.0-07P

Rated current (B)

12A

Rated voltage (B)

300V

Strip length

8mm

AWG

28~14AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

360

Products weight (without packaging)

9.58

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

7

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

400V

Rated voltage(III/3)

320V

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

400V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
