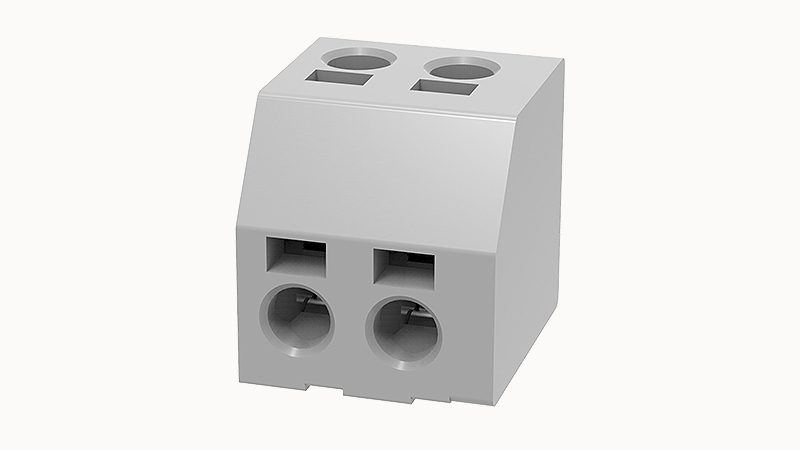

DEGSON DG208-5.0-02P

Conductor cross section solid

0.2~0.75mm²

Products weight (without packaging)

2.53

Packing unit

1520

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

2.5KV

Rated voltage(III/2)

450V

Rated current (D)

7A

Rated current (B)

7A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

7mm

AWG

20~16AWG

Conductor cross section flexible

0.2~0.75mm²

Number of rows

1

螺距

5mm

UL可燃性规范

UL94V-0

Rated current

9A

Connection method

Push-in spring connection

Rated voltage

450V

过程

Wave soldering/manual soldering
