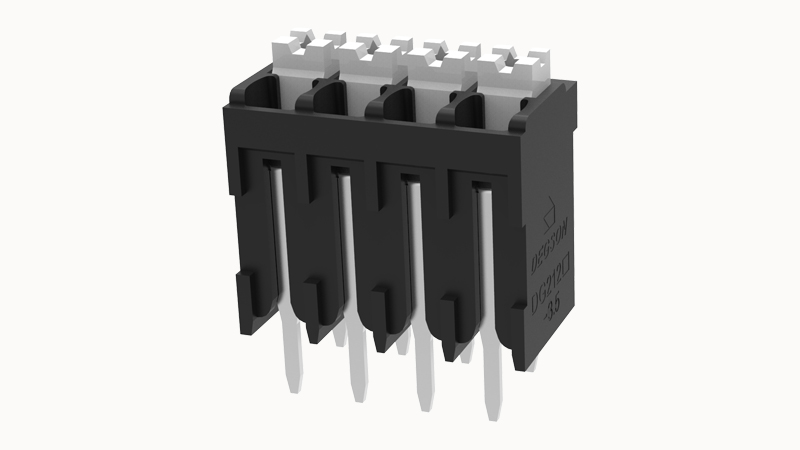

DEGSON DG212V-THR-3.5-04P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

28~14AWG

Products weight (without packaging)

2

Packing unit

1545

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

High temperature resistant materials

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated voltage(II/2)

320V

Rated voltage(III/2)

200V

Rated voltage(III/3)

200V

Rated current (D)

10A

Rated current (B)

12A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Number of rows

1

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

17.5A

Connection method

Push-in spring connection

Rated voltage

200V

过程

Reflow soldering/wave soldering/manual soldering
