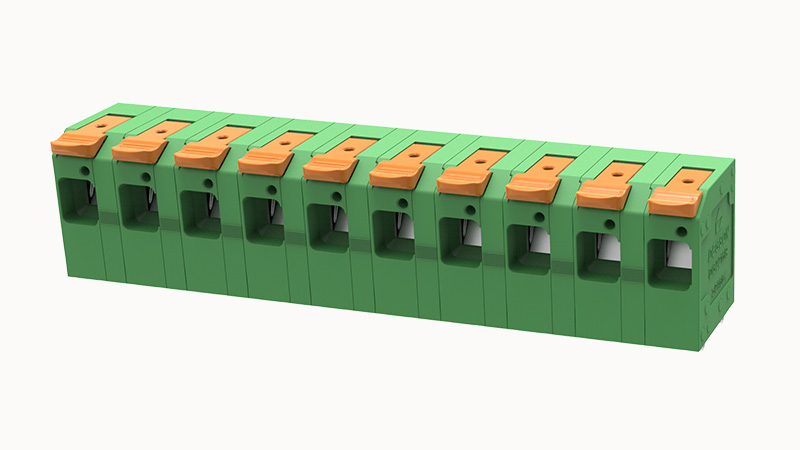

DEGSON DG2216R-15.0-DA-10P

Conductor cross section flexible

0.2~16mm²

Strip length

18mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

66A

Rated current (C)

66A

Rated voltage(III/3)

1000V

Products weight (without packaging)

143.133

Packing unit

20

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

10

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Rated surge voltage(II/2)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

1000V

Number of rows

1

螺距

15mm

UL可燃性规范

UL94V-0

Rated current

76A

Connection method

Push-in spring connection

Rated voltage

1000V

过程

Wave soldering/manual soldering
