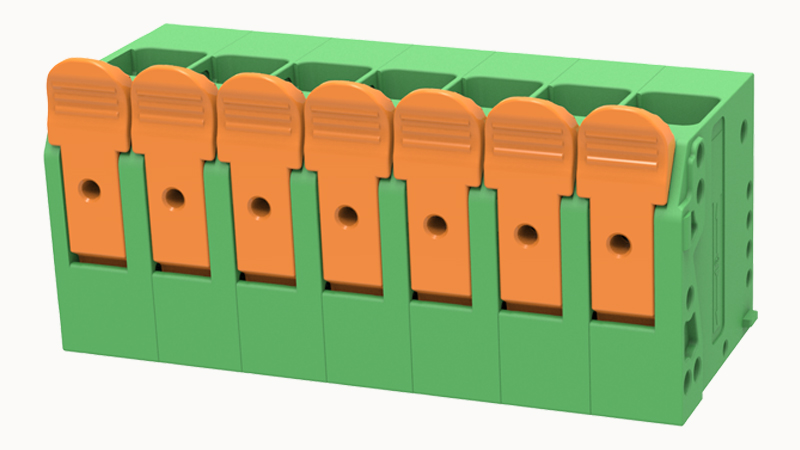

DEGSON DG2216V-10.0-DB-07P

Conductor cross section flexible

0.2~16mm²

Strip length

18mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

66A

Rated current (D)

5A

Rated current (C)

66A

Rated voltage(III/3)

1000V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

8KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Double-row of misalignment

Number of potentials

7

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

10

Products weight (without packaging)

89.166666666667

Number of rows

1

螺距

10mm

Rated current

76A

Connection method

Push-in spring connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
