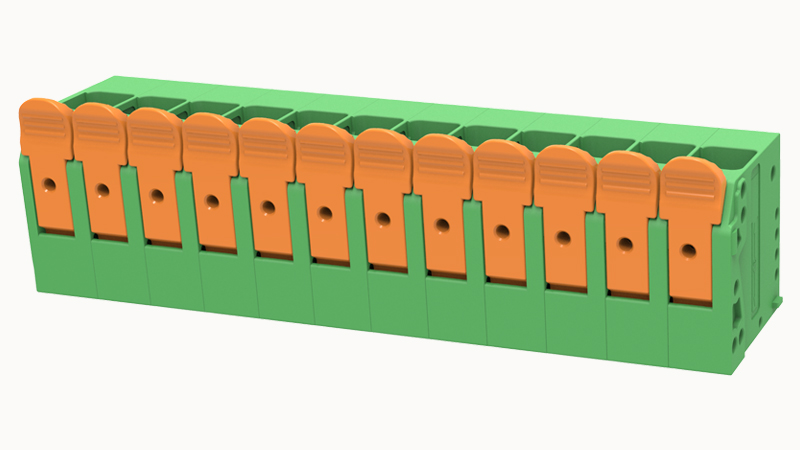

DEGSON DG2216V-10.0-DB-12P

Conductor cross section flexible

0.2~16mm²

Strip length

18mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

66A

Rated current (D)

5A

Rated current (C)

66A

Products weight (without packaging)

135

Packing unit

20

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

12

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

1000V

Rated voltage(III/3)

1000V

Number of rows

1

螺距

10mm

Rated current

76A

Connection method

Push-in spring connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
