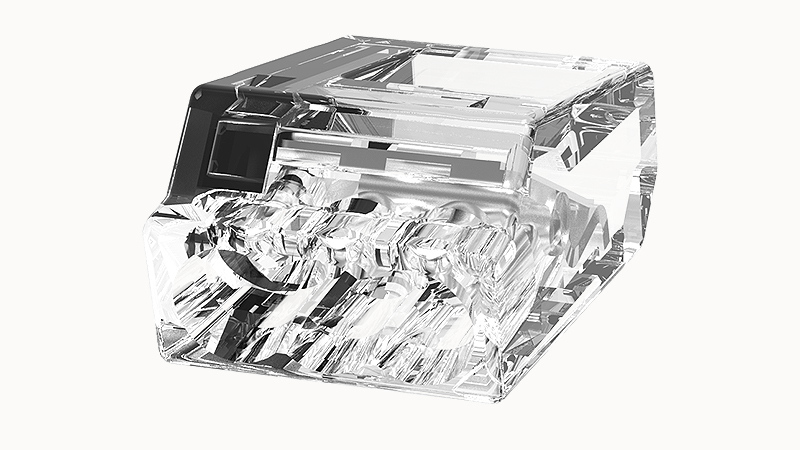

DEGSON DG228-3.5-04P

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

100

Products weight (without packaging)

3.058

Coding strip

/

Ambient temperature (operation)

-40℃~85℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅲa

Insulation Materials

PC

Contact Materials

steel

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Rated power frequency voltage(1min)

2.5KV

Rated voltage(III/2)

450V

Rated current (B)

15A

Rated voltage (B)

600V

Strip length

10mm

AWG

22~14AWG

Conductor cross section flexible

0.5~2.5mm²

Conductor cross section solid

0.5~2.5mm²

Number of rows

1

螺距

5mm

UL可燃性规范

UL94V-2

Rated current

Rated current;24A

Connection method

Push-in spring connection
