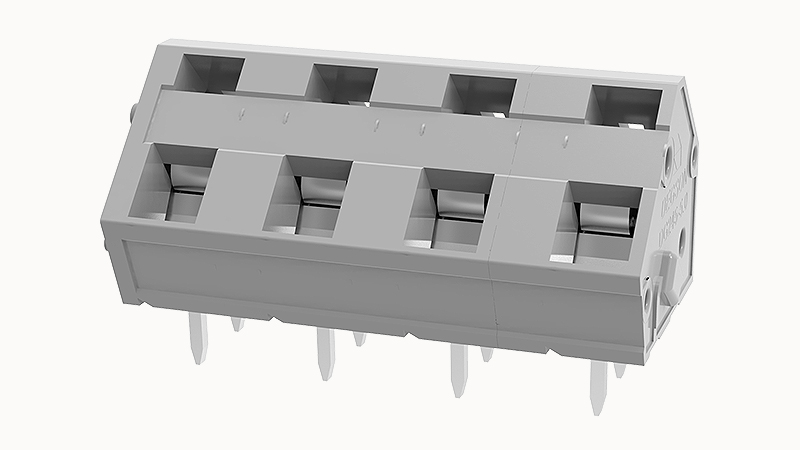

DEGSON DG245-7.5-04P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

28~12AWG

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

750V

Rated power frequency voltage(1min)

3KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

575

Products weight (without packaging)

4.4

Number of rows

1

螺距

7.5mm

Rated current

17A

Connection method

spring-cage connection

Rated voltage

750V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
