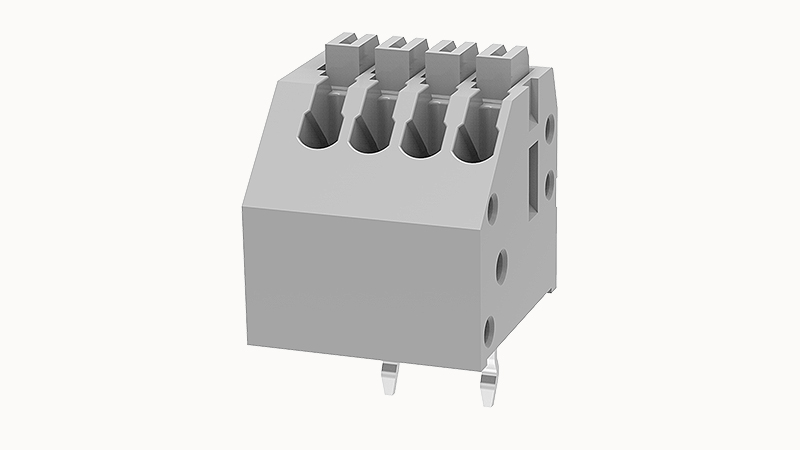

DEGSON DG250-2.5-04P

Screwdriver

/

Packing unit

1600

Products weight (without packaging)

1.55

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Connection direction

45°

Rated surge voltage(III/2)

2KV

Rated voltage(III/2)

250V

Rated current (C)

2A

Rated current (D)

2A

Rated current (B)

2A

Rated voltage (D)

300V

Rated voltage (C)

300V

Rated voltage (B)

300V

Strip length

9mm

AWG

24~20AWG

Conductor cross section flexible

0.2~0.5mm²

Conductor cross section solid

0.2~0.5mm²

Number of rows

1

螺距

2.5mm

Rated current

2A

Connection method

Push-in spring connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
