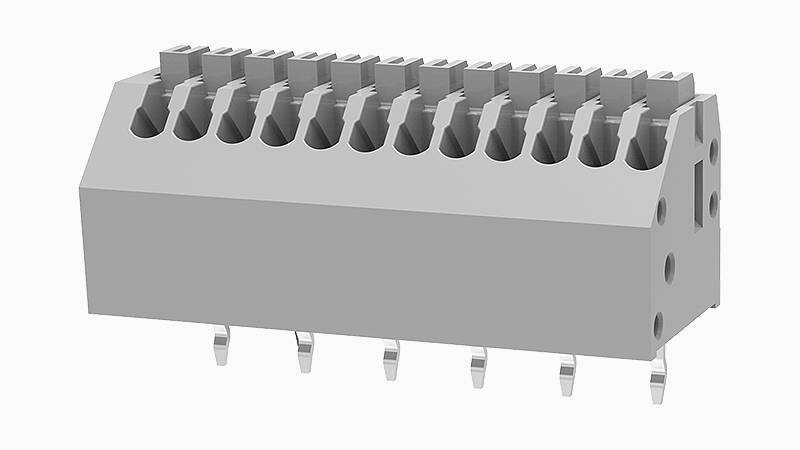

DEGSON DG250-2.5-12P

Rated current (C)

2A

Rated voltage(III/2)

250V

Rated surge voltage(III/2)

2KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Double-row of misalignment

Number of potentials

12

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

550

Products weight (without packaging)

4.28

Rated current (D)

2A

Rated current (B)

2A

Rated voltage (D)

300V

Rated voltage (C)

300V

Rated voltage (B)

300V

Strip length

9mm

AWG

24~20AWG

Conductor cross section flexible

0.2~0.5mm²

Conductor cross section solid

0.2~0.5mm²

Number of rows

1

螺距

2.5mm

Rated current

2A

Connection method

Push-in spring connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
