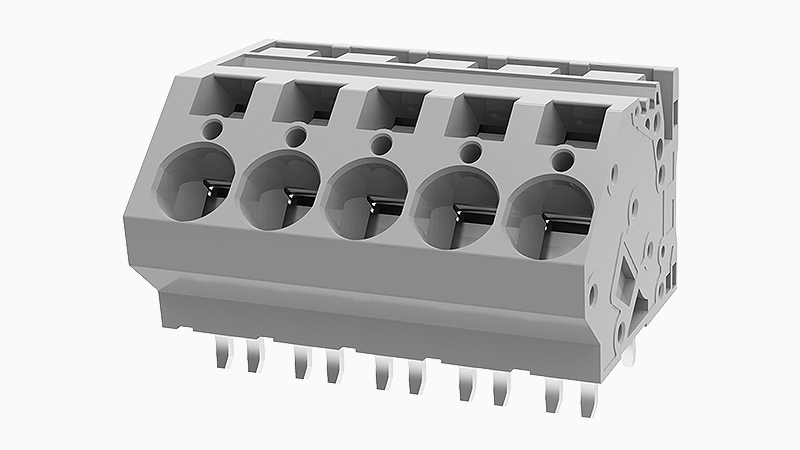

DEGSON DG264-10.0-05P

Conductor cross section solid

0.2~16mm²

Conductor cross section flexible

0.2~16mm²

AWG

24~4AWG

Strip length

12mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

300V

Rated current (B)

66A

Rated current (D)

10A

Rated current (C)

66A

Products weight (without packaging)

34.35

Packing unit

45

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

5

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

45°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

320V

Rated voltage(III/3)

320V

Number of rows

1

螺距

10mm

Rated current

76A

Connection method

spring-cage connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
