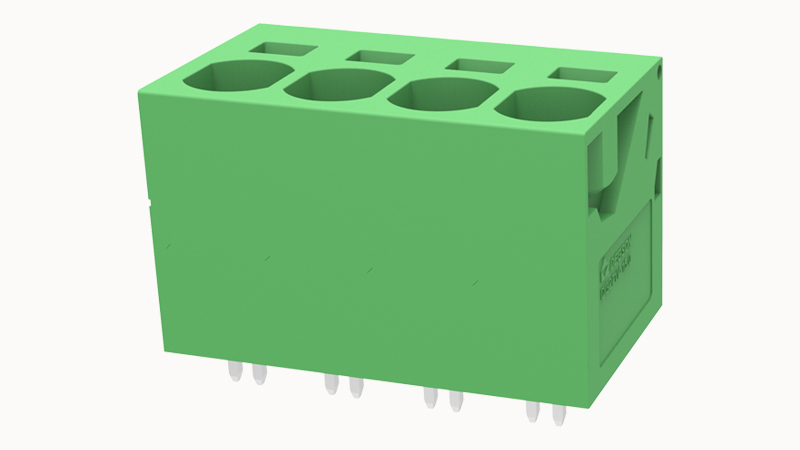

DEGSON DG271V-15.0-04P

screwdriver

/

Wire take tool

/

Coding strip

/

Bridge

/

marker strip

/

Packing unit

35

Products weight (without packaging)

101.4

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Shell color

green

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

4

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

1000V

Rated voltage(III/3)

1000V

Rated current (C)

101A

Rated current (D)

5A

Rated current (B)

101A

Rated voltage (D)

600V

Rated voltage (C)

600V

Rated voltage (B)

600V

Strip length

24mm

Conductor cross section flexible

1.5~35mm²

Conductor cross section solid

1.5~35mm²

Connectable conductor cross section

14~2AWG

Number of rows

1

螺距

15mm

Rated current

125A

Connection method

Quick connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
